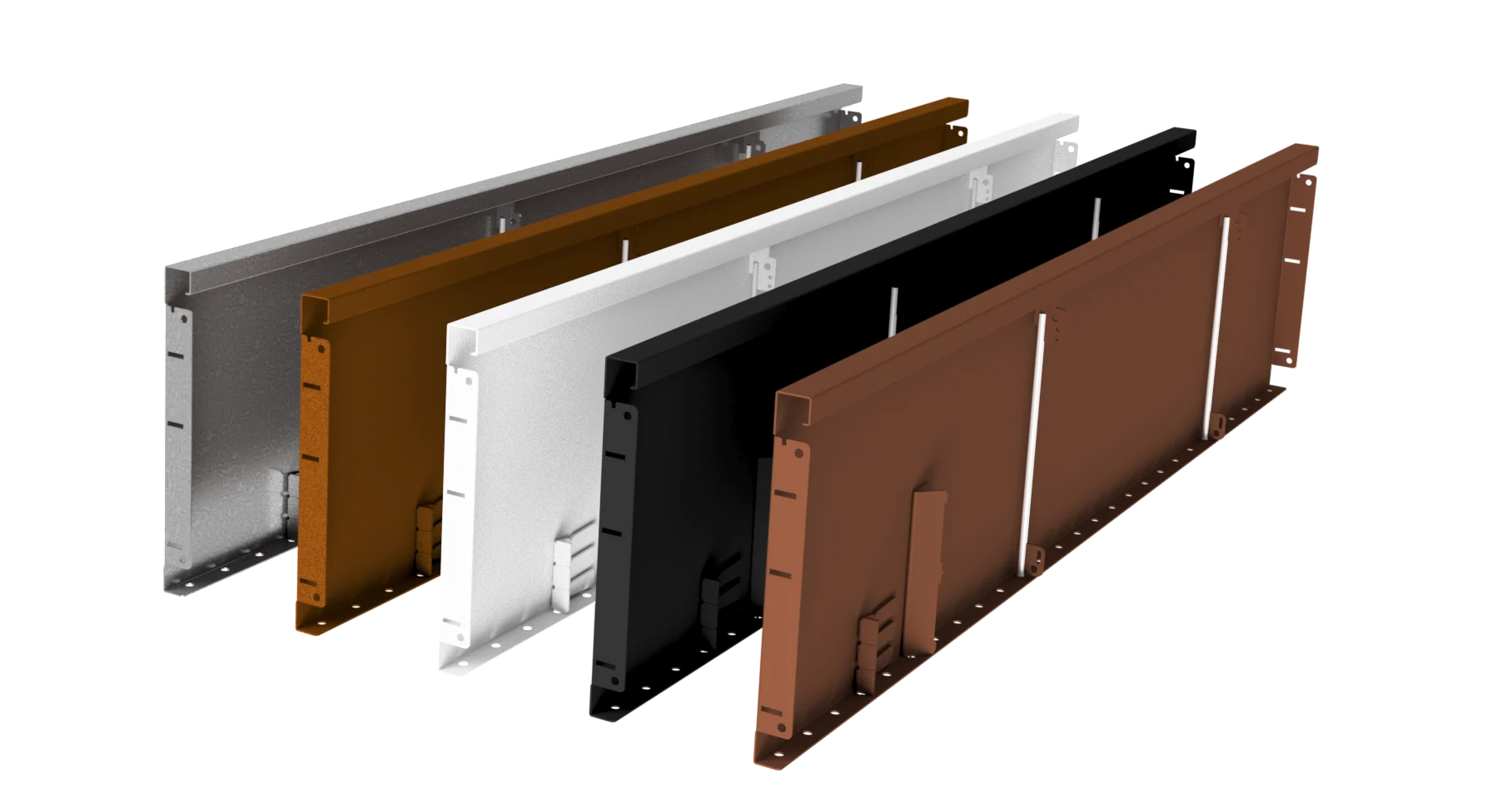

Zero-Flex Raised Garden Bed – 15.75″ high
Available steels
- #ab6109Weathering
- #a7a7a7Galvanised
Product Details
– Supplied as panels available in a variety of lengths –
– See product specifications for more info about join sets and bracing accessories –
Ideal for
- Square/Rectangular free standing beds
- Retaining walls
- Long ‘garden barrier’ beds
- Hard surface areas, ie patios & rooftops
- Tables & bench seats (create own top)
- For one wall retainer builds
Use as
- Raised garden beds and planters
- Retainers (One wall or Closed Shape)
- Outdoor furniture bases
- Storage boxes
Available panel lengths
Combine panels to make any size in 200mm increments
- 15.75" (400mm)
- 23.6" (600mm)
- 31.5" (800mm)
- 39.375" (1000mm)
- 47.25" (1200mm)
- 78.75" (2000mm)
Additional accessories
All fixings and accessories not to scale. All accessories are available in weathering and galvanised steel finish.
Required (or use alternative)
Straight join set
- Use for straight join between panels
- Allows longer planters/walls
- Requires Tek screws
Required
Closed corner set
- Use for a right angle corner join
- Typically for rectangle/square planters
- Requires Tek screws
Required (or use alternative)

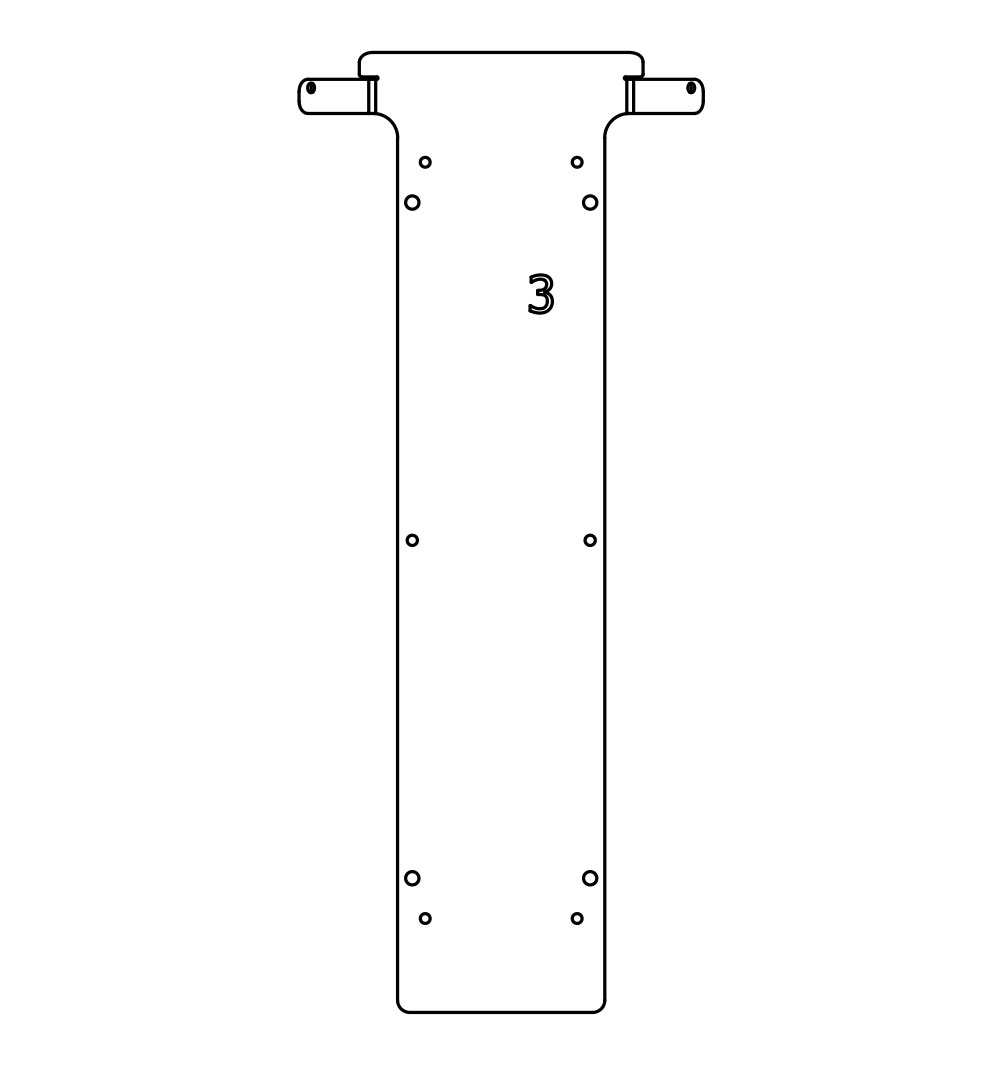

Open corner set
- Use for a reverse corner join
- Great for irregular shapes such as L shapes
- Requires Tek screws
Required (or use alternative)
Standard crossover bracing set
- Breakaway to length needed
- For planters 1.2m wide and smaller
- Cross support bracing method
Required (or use alternative)

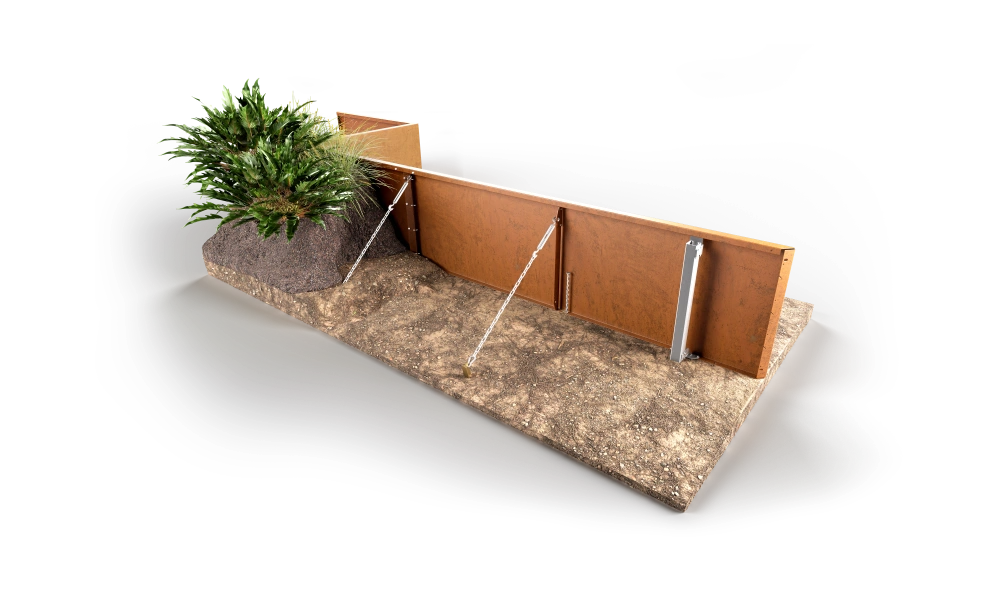

Universal Bracing Set
- For planters wider than 1.2m and retainer walls
- Fix with lockpin to straight join top eye hole or rod
- Turnbuckle for fine adjustment
- Anchor stake removable for bolt down installs
Required (or use alternative)

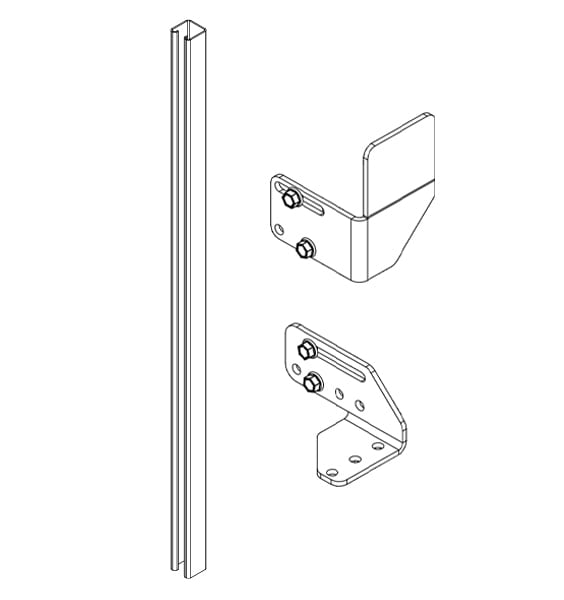

Large Anchor Post + Fix Lips
- Ideal for soft ground retaining
- Fix lips are attached to post and edge
- Use concrete around posts
- For planters wider than 1.2m and retainer walls
